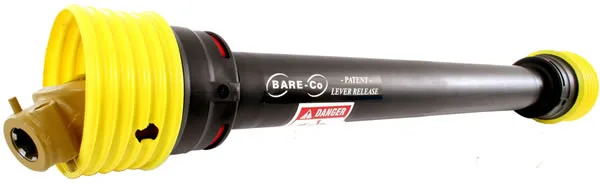

35 HP PTO Shaft — 1 3/8" x 6 both ends, 69"–107"
AB4150 · 4 Series · PTO Shaft
$247
Specification
- Product family
- Standard PTO Shafts
- Series
- 4 Series
- Position
- Tractor to rake
- End yoke
- Quick release yokes both ends
- Tractor spline
- 1 3/8" x 6
- Implement spline
- 1 3/8" x 6
- Closed, cross to cross
- 60" (152 cm)
- Open, cross to cross
- 98" (249 cm)
- Closed length (collapsed)
- 69" (175 cm)
- Open length (extended)
- 107" (272 cm)
- Decoded
- Quick release yokes both ends · 4 series
Length
Closed is the shaft fully collapsed — its shortest. Open is fully extended — its longest. Your tractor and implement must sit inside that range at every point through the turn.
Cross to cross is measured between the centres of the two universal joints. Overall is the full length including the end yokes. Most machine specs quote cross to cross.
Overall 69in-107in and cross to cross 60in-98in from the Complete PTO Shafts page. The tedder rake page gives 170cm (67in) closed for the same number; the longer figure is used.
FITS THESE MACHINES
| Machine | Position | Tier |
|---|---|---|
| Vicon RS410T | Tractor to rake | Standard |
| Vicon RS510T | Tractor to rake | Standard |
| Zweegers FANEX400 | Tractor to rake | Standard |
| Zweegers FANEX500 | Tractor to rake | Standard |
| Zweegers HS360 | Tractor to rake | Standard |

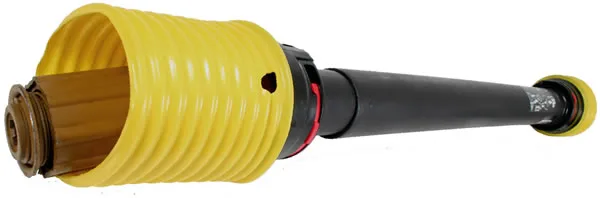

OTHER OPTIONS IN THIS SERIES
