150 HP Overrun / Slip Clutch — 1 3/4" x 20 spline male and female
B7252 · Freewheel slip clutch series · Overrun / Slip Clutch
$535
Specification
- Product family
- Clutches
- Series
- Freewheel slip clutch
- Position
- Front clutch
- End yoke
- 1 3/4" x 20 spline male and female
- Power at 540 rpm
- 150 hp
- Decoded
- Clutch or coupling
Match the tractor, not the implement. The shaft’s rating must meet or exceed your tractor’s PTO horsepower. Undersize it and the driveline becomes the part that fails.
Working it hard? Bare Co advise reducing the rated horsepower by 40% for severe conditions — shock loading, heavy or wet crop, stony ground.
Length
Closed is the shaft fully collapsed — its shortest. Open is fully extended — its longest. Your tractor and implement must sit inside that range at every point through the turn.
Cross to cross is measured between the centres of the two universal joints. Overall is the full length including the end yokes. Most machine specs quote cross to cross.

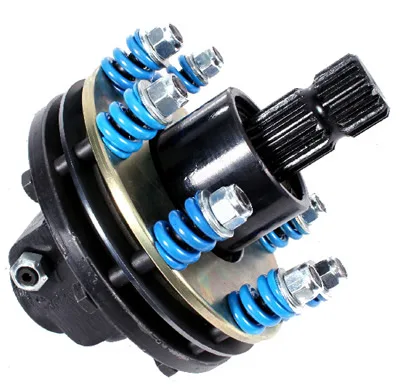

Combined freewheel / slip front clutch. A = 200mm (7.875")
