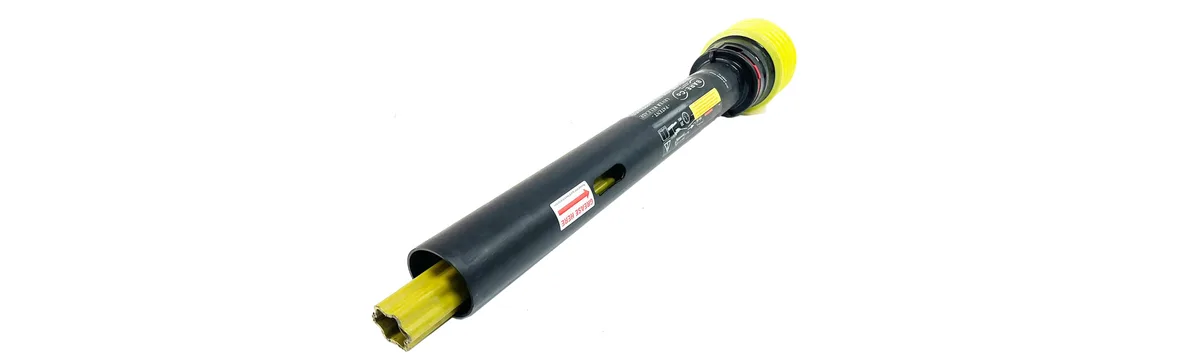

110 HP Wide Angle Half Shaft, Tractor End — 1 3/8" x 6 tractor end, 66"–105"
IHW36150 · W2580 series · Wide Angle Half Shaft, Tractor End
$1,042
This is one half of a driveline. A tractor end (inner drive tube) on its own will not drive the implement — you also need the matching implement end in the same W2580 series. The options are listed below.
Specification
- Product family
- Wide Angle (C.V.) Shafts
- Series
- W2580
- Tier
- Standard
- Position
- Tractor end (inner drive tube)
- End yoke
- 1 3/8" x 6 splines quick release
- Tractor spline
- 1 3/8" x 6
- Cross journal diameter
- 32/36 mm (1.26/1.42")
- Cross length
- 89/106 mm (3.50/4.17")
- Closed, cross to cross
- 51" (130 cm)
- Open, cross to cross
- 83" (211 cm)
- Closed length (collapsed)
- 66" (168 cm)
- Open length (extended)
- 105" (267 cm)
- Power at 540 rpm
- 110 hp
- Power at 1000 rpm
- 170 hp
- Decoded
- Wide angle half shaft, tractor end
Match the tractor, not the implement. The shaft’s rating must meet or exceed your tractor’s PTO horsepower. Undersize it and the driveline becomes the part that fails.
Check your PTO speed. This shaft is rated 110 hp at 540 rpm and 170 hp at 1000 rpm. Use the figure for the speed you actually run — they are not interchangeable.
Working it hard? Bare Co advise reducing the rated horsepower by 40% for severe conditions — shock loading, heavy or wet crop, stony ground.
Length
Closed is the shaft fully collapsed — its shortest. Open is fully extended — its longest. Your tractor and implement must sit inside that range at every point through the turn.
Cross to cross is measured between the centres of the two universal joints. Overall is the full length including the end yokes. Most machine specs quote cross to cross.
This shaft trims to length. Measure your machine at its shortest point — the shaft must not bottom out — then cut to suit. You can always take metal off; you cannot put it back.
COMPLETES THIS DRIVELINE
$330
$330
$330
$330
$292
FITS THESE MACHINES
| Machine | Position | Tier |
|---|---|---|
| Case IH LBX331P/R/S | Tractor end | Standard |
| Case IH LBX332P/R/S | Tractor end | Standard |
| Case IH LBX421S/R | Tractor end | Standard |
| Case IH LBX422R/S | Tractor end | Standard |
| Case IH LBX431R | Tractor end | Standard |
| Case IH LBX432R/S | Tractor end | Standard |
| Case IH LBX431S | Tractor end | Standard |
| Case IH BB940AP/AR/AS/P/R/S | Tractor end | Standard |
| Case IH BB960S/R/AR/AS | Tractor end | Standard |
| Case IH 590 | Tractor end | Standard |
| Claas Quadrant 1150 | Tractor end | Standard |
| Claas Quadrant 2100 | Tractor end | Standard |
| Claas Quadrant 2200 | Tractor end | Standard |
| Claas Quadrant 3200 | Tractor end | Standard |
| Claas Quadrant 3300 | Tractor end | Standard |
| Claas Quadrant 3400 | Tractor end | Standard |
| Claas Big Pack 4X4 HX-XC | Tractor end | Standard |
| Massey Ferguson 2140 | Tractor end | Standard |
| Massey Ferguson 2160 | Tractor end | Standard |
| Massey Ferguson 2170 | Tractor end | Standard |
| Massey Ferguson 2170XD | Tractor end | Standard |
| Massey Ferguson 2190 | Tractor end | Standard |
| Massey Ferguson 185 | Tractor end | Standard |
| Massey Ferguson 186 | Tractor end | Standard |
| Massey Ferguson 187LB | Tractor end | Standard |
| Massey Ferguson 190LB | Tractor end | Standard |
| Massey Ferguson 2150 | Tractor end | Standard |
| Massey Ferguson 2240 | Tractor end | Standard |
| Massey Ferguson 2250 | Tractor end | Standard |
| Massey Ferguson 2260 | Tractor end | Standard |
| Massey Ferguson 2270 | Tractor end | Standard |
| Massey Ferguson 2270XD | Tractor end | Standard |
| Massey Ferguson 2290 | Tractor end | Standard |
| Krone Big Pack 12130 | Tractor end | Standard |
| Krone Big Pack 12130 XC | Tractor end | Standard |
| Krone Big Pack 4X4 | Tractor end | Standard |
| Krone Big Pack 4X4 HS | Tractor end | Standard |
| Krone Big Pack 4X4 HX-XC | Tractor end | Standard |
| New Holland 230P/PC | Tractor end | Standard |
| New Holland 330/PC/R | Tractor end | Standard |
| New Holland 340P/R | Tractor end | Standard |
| New Holland 870P/PC/R | Tractor end | Standard |
| New Holland 930A | Tractor end | Standard |
| New Holland 940 | Tractor end | Standard |
| New Holland 940A | Tractor end | Standard |
| New Holland 940R | Tractor end | Standard |
| New Holland 940S | Tractor end | Standard |
